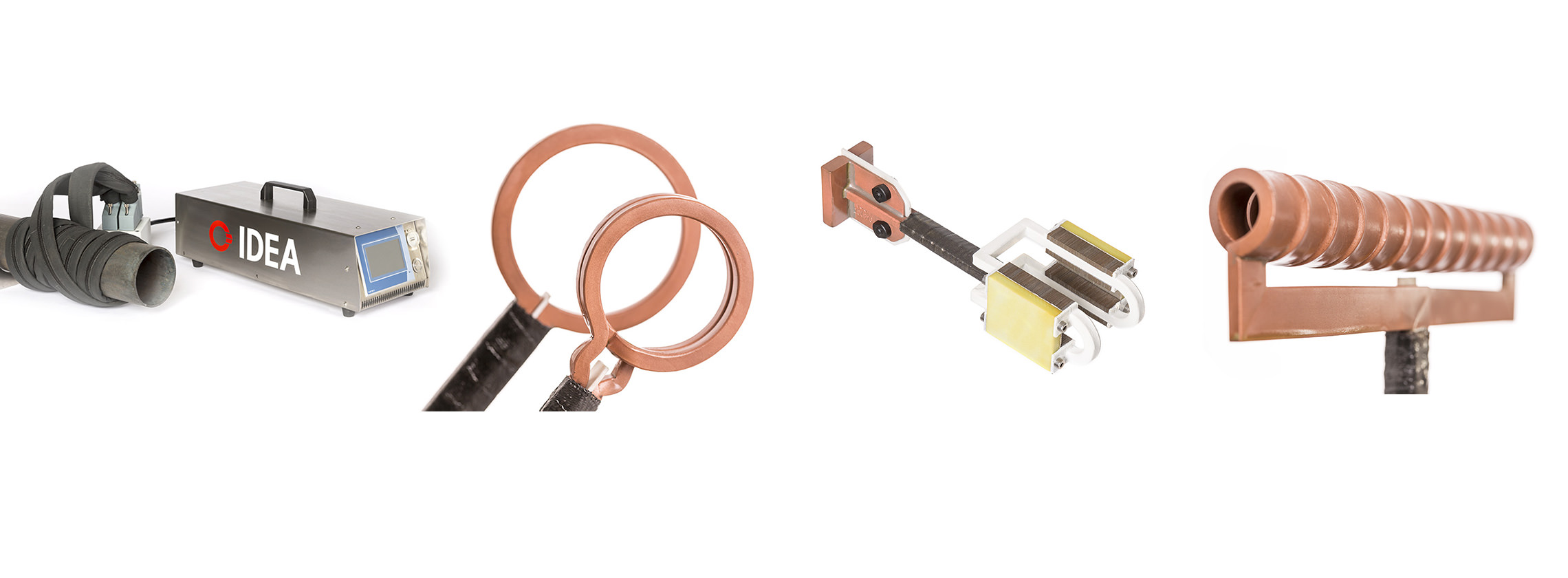

Types of Induction Coils

The geometry of an induction coil defines the electromagnetic field and how energy is transferred to the part.

Key factors include:

• Shape and size of the workpiece
• Required heating zone
• Depth of heat penetration
• Frequency and power input
• Positioning and coupling distance

Selecting the correct coil type ensures uniform heating, efficient energy transfer and stable process performance.

Solenoid coils are one of the most common induction coil types. They consist of helical windings that surround or partially surround the workpiece.

Typical applications:

• Induction hardening of shafts and cylindrical components
• Heating of rods, tubes and bars

Advantages:

• Uniform heating along the length of the part
• Efficient coupling for cylindrical geometries
• Suitable for automated processes

Pancake coils are flat, spiral-shaped coils used for surface heating applications.

Typical applications:

• Brazing and joining of flat components
• Surface heating and localized treatment

Advantages:

• Concentrated heating near the surface
• Suitable for flat or irregular surfaces
• Good control of heating area

Channel coils are designed to follow the contour of a specific part or heating path.

Typical applications:

• Straightening and repair processes
• Heating along defined edges or contours

Advantages:

• Precise alignment with complex geometries
• Controlled and localized heat input
• Adaptable to custom applications

Internal coils are inserted into hollow components to heat from the inside.

Typical applications:

• Heating of tubes and hollow parts
• Internal brazing and joining operations

Advantages:

• Efficient heating from inside the component
• Uniform internal temperature distribution
• Reduced heat loss to surrounding areas

Specialized induction coils are used for cable heating applications, often in combination with air-cooled cable systems.

Typical applications:

• Cable heating with air-cooled cables
• Continuous heating processes

Advantages:

• Flexible system integration
• Efficient energy transfer in continuous operation
• Reduced need for water-cooled connections in certain setups

Standard coil types are often adapted or combined to meet specific process requirements.

IDEA develops custom coil designs based on:

• Part geometry and production setup
• Required heating pattern and cycle time
• Integration into automated systems

Custom solutions are especially important in applications such as induction hardening, brazing and straightening, where precision and repeatability are critical.

In addition to general coil geometries, induction coils are often described based on how they are applied to the workpiece.

Common configurations include:

• Fork coils – used for localized heating and scanning applications
• Hairpin coils – suited for heating defined areas on flat or cylindrical parts
• Face heating coils – designed for heating surfaces or end faces
• Outside heating coils – used for external heating of components
• Inside heating coils – used for heating internal diameters and bores

These configurations are typically derived from standard coil geometries and adapted to meet specific application requirements.

Additive manufacturing enables the production of complex induction coil geometries that are not feasible with conventional fabrication methods.

3D-printed coils allow for:

• Complex internal cooling channel designs
• Optimized flow paths for improved thermal performance
• Geometries closely matched to part contours
• Reduced assembly requirements

Typical applications:

• Induction hardening of complex components
• Brazing and joining in confined or irregular geometries
• Specialized heating applications with tight spatial constraints

Advantages:

• Improved cooling efficiency through optimized channel design
• Greater design flexibility for complex parts
• Potential for reduced thermal stress and improved coil life

Additive manufacturing is particularly valuable in applications where conventional coil designs are limited by geometry or cooling constraints.

Choosing the correct coil type is essential for achieving the desired heating result.

Factors to consider:

• Application type and process requirements
• Material and geometry of the workpiece
• Required heating depth and temperature
• Production environment and automation level

Proper coil selection improves efficiency, reduces energy consumption and ensures consistent process results.

Whether you need support selecting a coil type or developing a custom design, IDEA provides engineering support tailored to your application.
